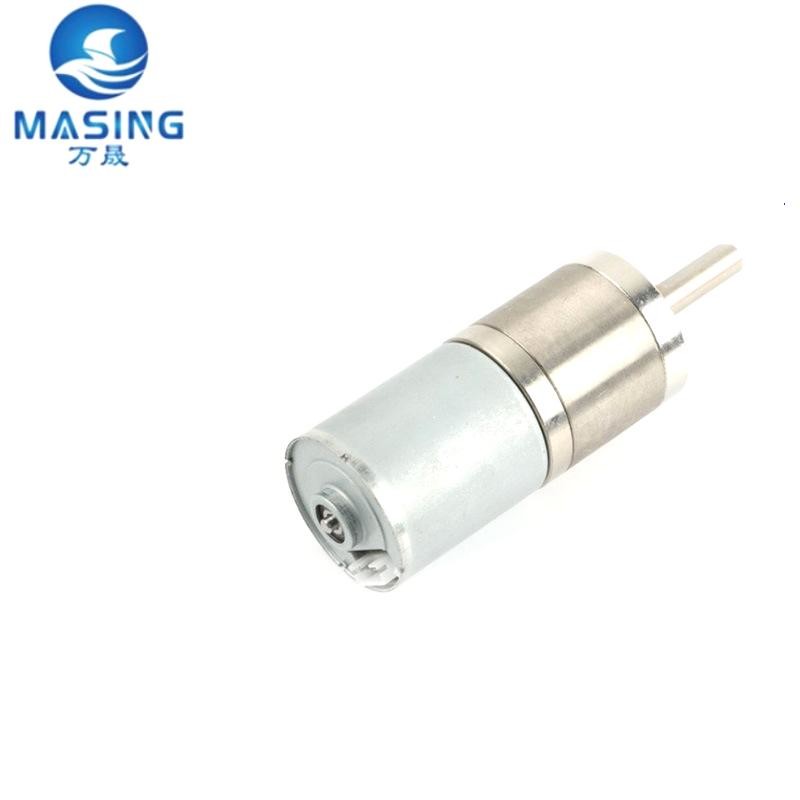

36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box

  • 1
  • 2
  • 3

Brand Name : Masing Motor

Model Number : MSGM36P545

Certification : 16949,ISO CE ROHS

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton Box

Product name : brushless dc planetary gear motor

Shaft type : with a hole ,Flat ,D-Cut or Round ,Threaded hole, threaded shaft

Efficiency : High Efficiency

Speed : 5rpm -1000rpm or Customized

Gear box Diameter : φ36mm Metal Gearbox

Shaft diameter : φ8mm

voltage : 6v-30v

Motor type : BL545 ,BL540,BL550,BL555

Gearbox material : Rohs Metal

Supported : OEM or ODM

Direction : cw &ccw

Contact Now

36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
Product Overview

Model: PGM36-545 | Product Name: Brushless DC Planetary Reduction DC Gear Motor

This high-performance brushless DC planetary gear motor features a compact φ36mm diameter design, delivering reliable operation with low noise and high torque for demanding industrial applications.

Key Specifications
  • Speed Range: 5rpm - 1000rpm (Customizable)
  • Voltage: DC 6V - 30V
  • Power: 1W - 100W
  • Torque: 1KGf.cm - 50KGf.cm
  • Gearbox Size: φ36mm diameter
  • Compatible Motors: BLDC540, BLDC545, BLDC550, BLDC555
  • Motor Direction: CW & CCW available
  • Working Temperature: -40°C to +60°C
  • Noise Level: ≤60DB
Technical Features
  • Signal Output: FG Signal
  • Speed Control: PWM Control
  • Motor Life: 3000H (Oi Bearing) / ~5000H (Ball Bearing)
  • Protection: Locked Rotor Protection & Overcurrent Protection
  • Construction: Permanent Magnet
  • Enclosure: Totally Enclosed
  • Efficiency: 90%-58%
Product Images
36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box 36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box 36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
Performance Specifications
36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
DC 12.0V Specifications
RATIO 1:5.2 1:19 1:27 1:51 1:100 1:139 1:264
No-load current(mA) ≤220 ≤220 ≤220 ≤220 ≤220 ≤220 ≤220
No-load speed(rpm) 480 130 92 49 25 18 9.5
Rated torque(Kg.cm) 1.0 1.5 2.5 5.0 10.0 15.0 30.0
Rated speed(rpm) 240 70.00 75.00 40.00 20.0 14.0 7.5
Rated current(A) ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Stall torque(kg.cm) ≥2 ≥13 7 11 22 35 50
Stall current(A) ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
DC 24.0V Specifications
RATIO 1:5.2 1:19 1:27 1:51 1:100 1:139 1:264
No-load current(mA) ≤230 ≤230 ≤230 ≤230 ≤230 ≤230 ≤230
No-load speed(rpm) 960 260 185 98 50 36 19
Rated torque(Kg.cm) 2.00 5.0 5.0 10.0 20.0 30.0 50.0
Rated speed (rpm) 480 165 150 80 40 28 15
Rated current(A) ≤2.8 ≤2.0 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.3
Stall torque(kg.cm) ≥4.5 ≥13 ≥15 ≥22 ≥45* ≥45* ≥45*
Stall current(A) ≤6.5 ≤6.5 ≤6.5 ≤6.5 ≤6.5 ≤6.5 ≤6.5

* Cannot exceed 6 seconds

Product Attributes
Brand Name
Masing Motor
Model Number
MSGM36P545
Place of Origin
Guangdong, China
MOQ
1000 Pcs
Gearbox Material
Rohs Metal Gearbox
Supply Ability
100,000 Pieces per Month
Applications

Robotics, Intelligent Devices, Home Appliances, Vacuum Cleaners, Medical Equipment, SMART HOME, Electric Bicycle Locks, Cosmetic Instruments, Automotive Electronics, Security Devices, Production Automation, and more.

36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
Packaging & Delivery
  • Packaging: Strong Carton (400pcs/box) or customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Package Size: 37×27×24cm
  • Gross Weight: 500g per unit
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Maximum sample quantity: 1 piece | Sample price: $25/piece

36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box 36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box 36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
Frequently Asked Questions
Q1: Are you a factory?
A1: Yes, we are a factory specializing in micro geared motors, brushless DC motors, DC motors, and DC planetary gear boxes.
Q2: Is it possible for you to develop new motors if we provide tooling cost?
A2: Yes. Please share detailed requirements regarding performance, size, annual quantity, and target price for evaluation.
Q3: Could you send me free samples?
A3: Yes, and we can refund your sample fee when you place an order.
Q4: What is the quality of the planetary reducer?
A4: Our gear motors are exported worldwide and receive positive feedback for reliable operation, low noise, and high torque performance.
Q5: Can you send me a price list?
A5: All motors are customized based on requirements like lifetime, noise, voltage, and shaft specifications. Please share your detailed requirements and annual quantity for pricing.
Q6: How can you guarantee the quality?
A6: We perform 100% finished product inspection before delivery with no defective products returned.
Q7: How long is the delivery time?
A7: Delivery time depends on order quantity, typically 15-25 working days.
