High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Brand Name : Masing Motor

Model Number : MSGM36P545

Certification : RohS,CE,ISO

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton box

Product Name : 24v dc planetary gear motor

Shaft diameter : φ8mm,φ10mm

Motor size : φ36mm*L50mm,φ36mm*L57mm

Gearbox efficiency : 90%-65%

Shaft Type : customization available

Direction : CW&CCW

Power : 1w-100w

Torque : 0.1Nm-10Nm

Gearbox Diameter : φ 36mm metal gearbox

Gears Material : Copper ,steel,Powder metallurgy ect

Contact Now

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
Product Overview

High Torque Reducer RS-545 Motor DC Motor Micro Planetary Gear Motor 12V 36mm Planetary Gearbox designed for vacuum cleaners and various automation applications.

  • Rated Voltage: 6V-24V DC
  • Compatible Motor Types: RS-540, RS-545, RS-550, RS-555
  • Magnetic Selection: Ordinary magnetic, strong magnetic
  • Output Speed: 2rpm - 1000rpm
  • Rated Torque: 0.1NM - 10NM
  • Motor Power: 1W - 100W
  • Gearbox Diameter: φ36mm
  • Working Temperature: -40°C to +60°C
  • Motor Life: 500H - 3000H
  • Certifications: CE, Rohs, ISO
  • Efficiency: 90% to 66%
Technical Specifications
Speed (RPM)
2-1000 rpm (customized)
Continuous Current
20mA - 1A
Efficiency
90% - 65%
Model Number
MSGM36P545
Shaft Diameter
φ8mm or φ10mm (customized)
Torque
0.1NM - 10NM
Construction
Permanent Magnet
Noise Level
≤55DB
Weight
500g
MOQ
1000 Pcs

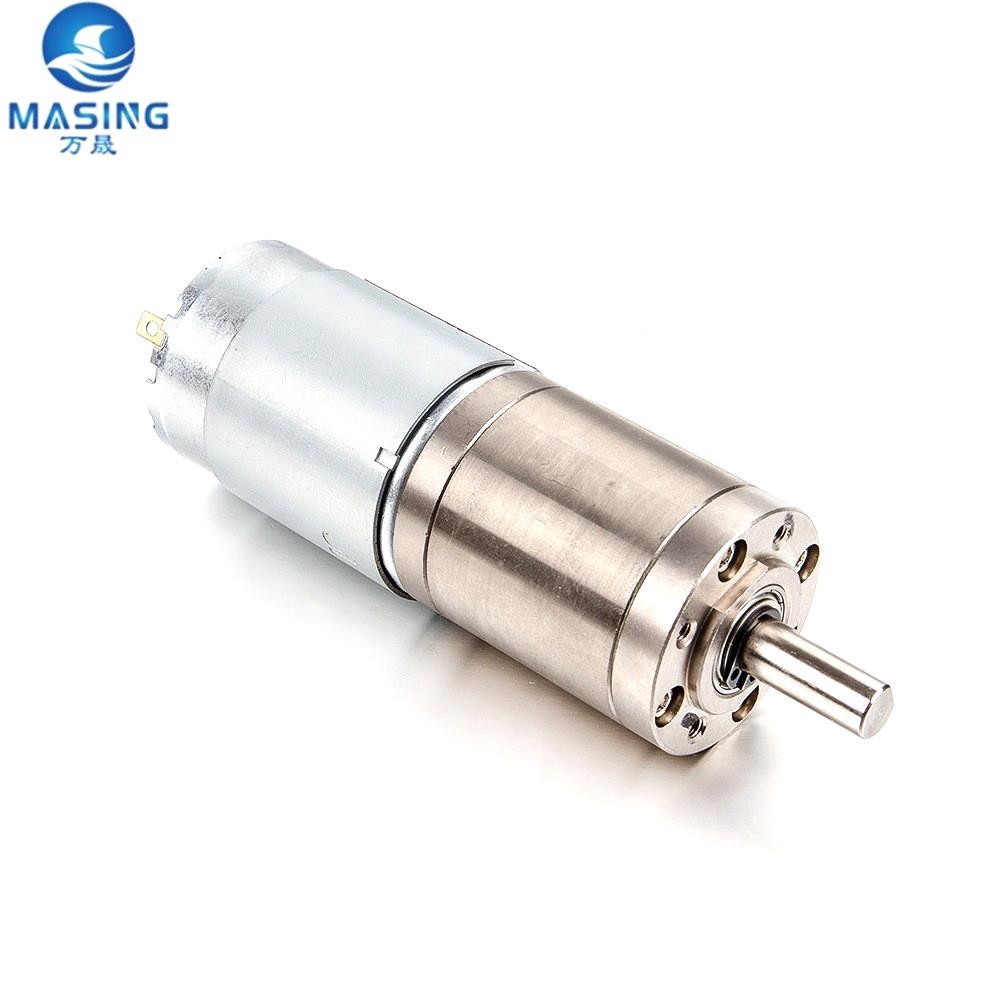

Product Images
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum CleanerHigh Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
Gearbox Performance Data
Number of StagesReduction RatioGearbox Length "L"Gearbox Efficiency
13.71, 5.1824.690%
213.8, 19.2, 26.931.881%
351, 71, 100, 1393973%
4190, 265, 369, 516, 72146.266%
Motor Performance Characteristics
Model NumberRated VoltageNo Load Speed (rpm)No Load Current (mA)Load Speed (rpm)Load Current (mA)Torque (Kgf.cm)Power (W)
GM26P5550126000-5.2K12V115365096030001.211.8
GM26P5550128000-14K12V5719004653500419.1
GM26P5550126000-27K12V22340017516004.27.5
Note: The left side of redline area can continuously work. Please refer to the rated voltage used by our motor. Voltage exceeding the range may cause the machine to burn.
Applications
  • Robotics Automation
  • Smart Home Systems
  • Electric Curtains
  • Vacuum Cleaners
  • Medical Imaging Equipment
  • Manufacturing Plant Robots
  • Power Tools
  • Personal Care Devices
Packaging & Delivery
Packaging
Strong Carton 100pcs/box
Port
Shenzhen/Guangzhou/Shanghai
Package Size
37×27×24cm
Gross Weight
500g
Lead Time
Quantity (pieces)Lead Time (days)
1 - 10010
101 - 100015
> 5000To be negotiated
Samples & Customization
  • Maximum Sample Quantity: 1 piece
  • Sample Price: $15/piece
  • Customization Support: OEM, ODM, OBM
  • Supply Ability: 100,000 pieces per month
Frequently Asked Questions
Q1: Can you customize according to my specification?
A1: Sure, we have a professional R&D centre and can customize according to your specifications.
Q2: How to select a suitable motor?
A2: Please provide motor pictures, drawings, or detailed specs like voltage, speed, torque, motor size, working mode, needed lifetime and noise level. We will recommend suitable motors accordingly.
Q3: What's the main usage of the micro DC gear motor?
A3: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, automation industry, and various industrial applications.
Q4: Do you have a customized service for your standard motors?
A4: Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as needed.
Q5: What if I don't know the technical data?
A5: Please contact our sales team - we'll answer your questions patiently and help you select the right motor.
Q6: What's your lead time?
A6: Standard products: 25-30 days. Customized products may take longer. Lead times are flexible and depend on specific order requirements.
