12V 6000RPM Brushless DC Outrunner Motor 3 Phase High Torque 24V DC Brushless Motor
Product Overview
This high-performance brushless DC outrunner motor operates at 12V with 6000RPM speed, featuring 3-phase design for high torque applications. Suitable for massager guns and various industrial applications.
- Voltage range: DC 6V-30V
- Rated Speed: 1000RPM-10000RPM or customized
- Rated torque: 10gf.cm-700gf.cm

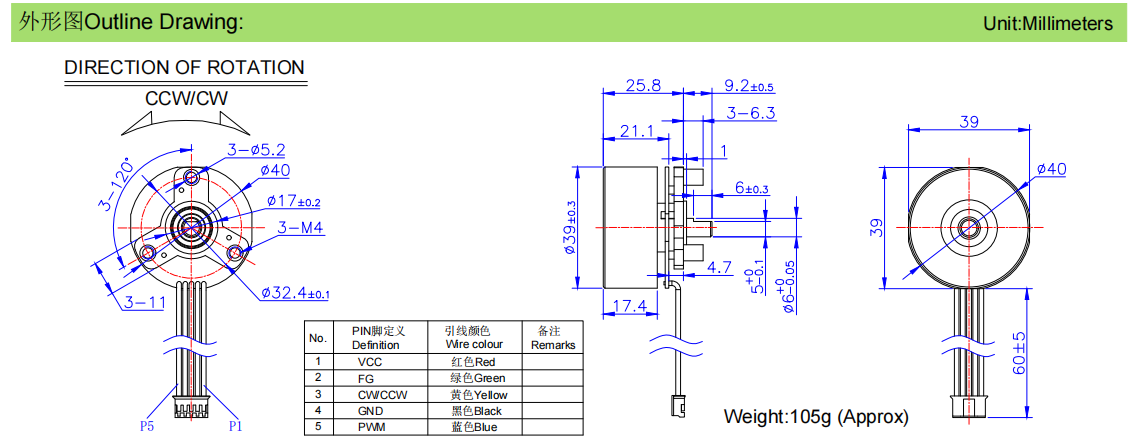

- Motor Size: φ39mm × L26mm
- Direction: CW & CCW available
- Shaft diameter: φ6mm, D-cut or customized
- Working temperature: -40°C to +60°C
- Structure: Built-in driver or external driver
Technical Specifications
- Speed (RPM): 3600RPM
- Continuous Current: 10mA-500mA
- Efficiency: 70.0%
- Motor Type: Brushless Motor
- Model Number: MSBL3926
- Weight: 105g (Approx)
- Noise: ≤55DB
- Rated Voltage: 6V-28V
- Warranty: 3 Months - 1 year
- Place of Origin: Guangdong, China
- Brand Name: Masing Motor
Performance Data
| Motor Model |
Voltage |
No Load Current |
No Load Speed |
At Maximum Efficiency Current |
At Maximum Efficiency Speed |
Torque |
Power |
Efficiency |
Stall Current |
Stall Torque |
| BL4026*** |
6-9V |
0.51A |
3676rpm |
2.04A |
2941rpm |
350g-cm |
10.6W |
70.0% |
8.17A |
1750g-cm |
| BL4026*** |
9-14V |
0.82A |
6000rpm |
3.24A |
4770rpm |
565g-cm |
17.2W |
78.2% |
13.2A |
2838g-cm |
Applications
Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, 5G Base Station, Electric Curtain, Home Application, Personal Care, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Medical Imaging Equipment, Toys, Massager, Robot Vacuum Cleaner, sweeping robot, electric wheelchair, paper shredder, lawn mower, range hood, dishwasher.
Packaging & Delivery
- Packaging: Strong Carton 300pcs/box, or customized
- Port: Shenzhen/Guangzhou/Shanghai
- Selling Units: Single item
- Package Size: 37×27×24cm
- Gross Weight: 105g (Approx)
- Supply Ability: 100,000 pieces per month
Lead Time
| Quantity (pieces) |
1 - 100 |
101 - 1000 |
> 5000 |
| Lead Time (days) |
10 |
15 |
To be negotiated |
Samples & Certifications
Maximum sample order quantity: 1 piece
Sample price: $15/piece
Frequently Asked Questions
Q1: How to choose a motor to match my machine?
A1: Please provide key parameters such as physical size (diameter, length, etc), torque, voltage, and power consumption. Our team is available to assist with motor selection.
Q2: Could you provide customized service?
A2: Yes, all parameters can be customized according to your specific requirements. Please contact us for detailed information.
Q3: Can I order samples first?
A3: We stock many standard models and can provide samples for testing. For specialized motors, please contact us with your requirements.
Q4: How long is your delivery time?
A4: Delivery time depends on order quantity, typically 7-15 working days. Regular products ship within 3 working days, customized samples within 7-10 working days.
Q5: What is your quality assurance process?
A5: We have professional testing instruments and QC team, performing full inspection for each mass production batch to ensure quality standards.
