Geared Brushed Motor Reducer Gearbox 12mm N20 N30 DC Motor For Locks And Robots

Name: Geared Brushed Motor Reducer Gearbox 12mm N20 N30 DC Motor For Locks And Robots
Brand: Masing Motor
Price: 1 USD

Buy cheap Geared Brushed Motor Reducer Gearbox 12mm N20 N30 DC Motor For Locks And Robots product

Brand Name : Masing Motor

Model Number : MSGM12N20

Certification : ROHS

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton box

Material : Steel,Copper

Shaft : Customization D-cut or Round

Commutation : Brush Motor

Torque : TBD

Motor Size : 12mm *15mm

Motor type : N20 Gear Motor

Direction of rotation : CCW&CW

Construction : Permanent Magnet

Gear Box size : 12mm*10mm

Certificate : CE Rohs,ISO

Application : Smart cabinet lock, Smart Robot, Electric Toys

Contact Now

Geared Brushed Motor Reducer Gearbox 12mm N20 N30 DC Motor For Locks And Robots

Product Overview

High-performance DC spur geared motor offering exceptional efficiency and reliability for various industrial and commercial applications including locks, 3D printing, home appliances, and robotics.

Key Features

High Efficiency: 70% efficiency rating ensures optimal performance
Low Noise Operation: ≤55DB noise level for quiet applications
High Torque: 0.1-2 kg.cm torque range for strong driving force
Customizable Options: Various diameters (12mm, 13mm, 14mm) and colors available
Durable Construction: Totally enclosed design with permanent magnet construction
Compact Design: Small footprint with low speed and high torque capabilities
All-Metal Gears: Long service life with metal cutting gears

Technical Specifications

Speed (RPM)	5-3000 rpm
Continuous Current	10-300mA
Efficiency	70%
Torque	0.1-2 kg.cm
Diameter	12mm, 13mm, 14mm, etc.
Weight	10g
Noise Level	≤55DB
Shaft Type	D-cut, Round, or Double D-cut
Motor Type	Brush DC Gear Motors
Minimum Order Quantity	1000 Pcs

Applications

Electronic Door Locks, Smart Home Systems, Appliances, Smart Robots, Electric Toys, 3D Printing, Smart Cabinet Locks, Optical Equipment, Micro Mechanical Systems, Automotive Supplies, Security Monitoring, and more.

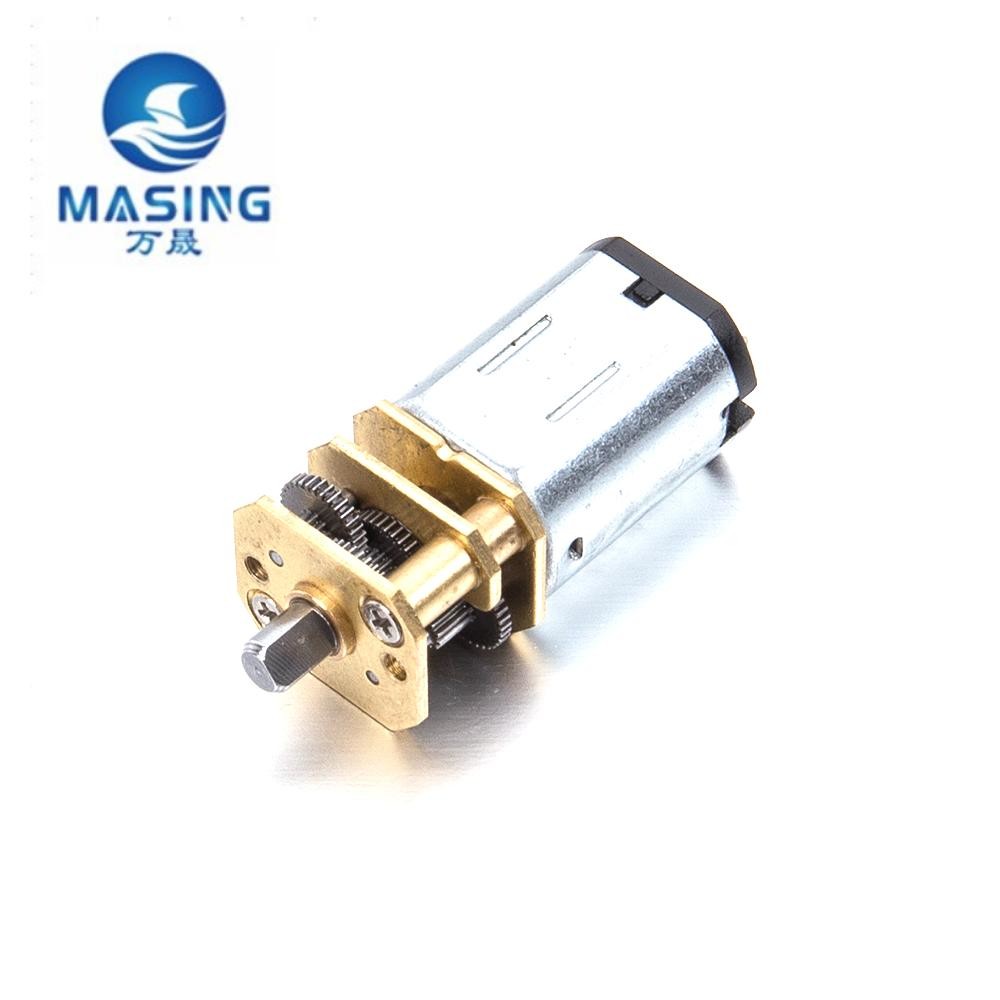

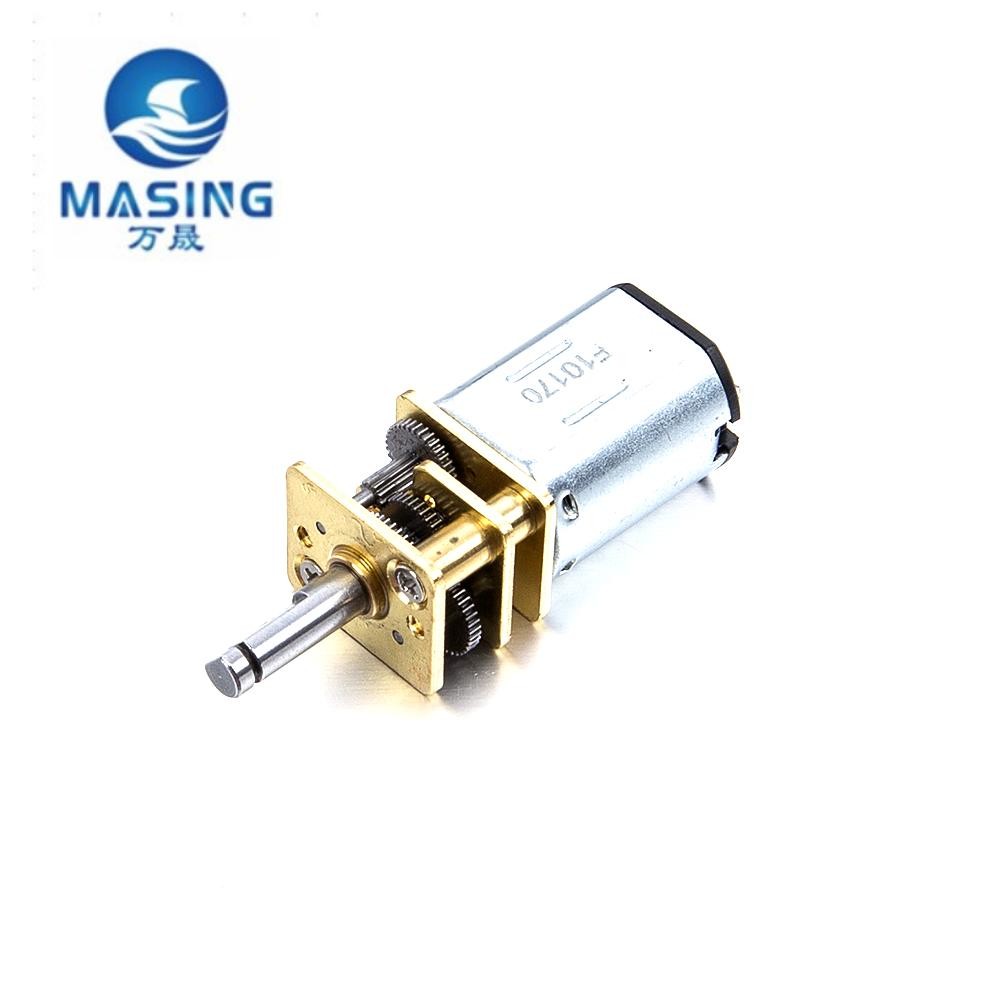

Product Images

Geared Brushed Motor Reducer Gearbox 12mm N20 N30 DC Motor For Locks And Robots

Packaging & Delivery

Packaging	Strong Carton 1000pcs/box, or customized
Shipping Ports	Shenzhen, Guangzhou, Shanghai
Package Size	37×27×24cm
Gross Weight	10.0kg

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples & Certifications

Maximum sample order: 1 piece at $10/piece

Frequently Asked Questions

Q1: How to order?

Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: How about Sample order?

Samples are available. Please contact us for details.

Q3: Which shipping methods are available?

DHL, UPS, FedEx, TNT, EMS, China Post, Sea, and other shipping methods available upon request.

Q4: How long is the delivery time?

Delivery time depends on order quantity, typically 15-25 working days.

Q5: Do you accept customizations?

Yes, we have a strong design team to handle custom requirements and provide technical support.

Q6: What information do I need to provide for ordering?

Please provide rated voltage, no load speed, load speed, load torque, and overall dimension requirements.

Q7: What if I don't know the technical data?

Our sales team will assist you and answer all your questions patiently.

Q8: How to confirm payment?

We accept T/T, PayPal, and other payment methods. Typically 30-50% deposit with balance paid before shipping.

Supply Capacity

100,000 pieces per month
